How to Make a Fourth of July Firework 50-Shot Angled Mortar Tube Rack!

Updated on September 19, 2019
Bishop55 profile image

Rebecca loves sharing what I know about alternative medicine, health, frugal living, fun, animals, and how to live a better life!

50-Shot Fanned Mortar Tube Rack

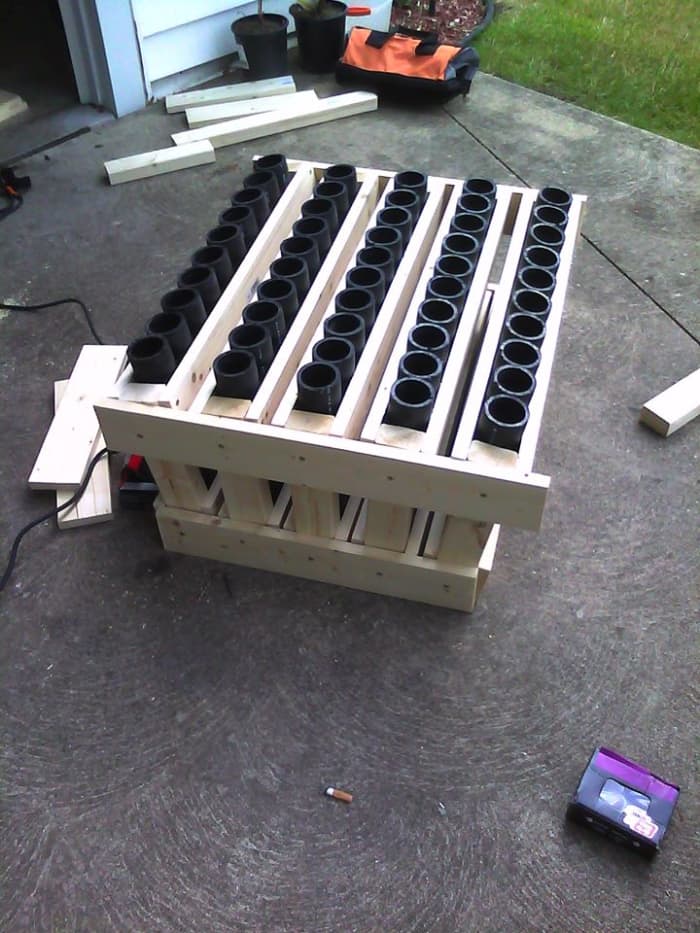

Completed 50-shot Launcher. You don't have to worry about this thing moving once the fuse is ignited; it weighs about 85 lbs.

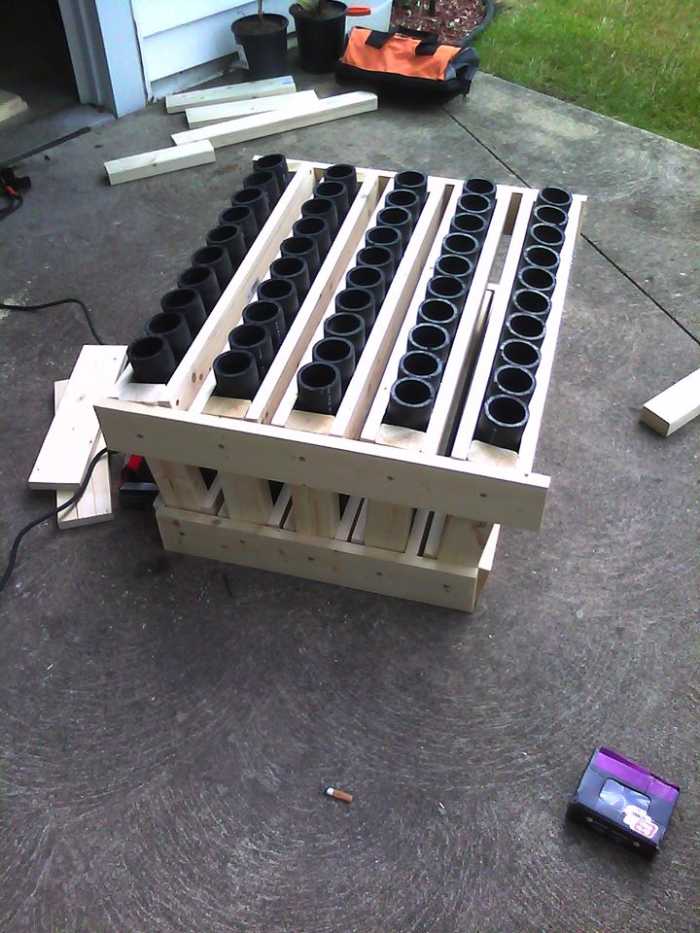

Completed 50-shot Launcher. You don't have to worry about this thing moving once the fuse is ignited; it weighs about 85 lbs.


The anatomy of a single shot mortar
The anatomy of a single shot mortar


Build at your own risk. This article accepts NO responsibility for errors you make, injury, fire, explosions, legal ramifications, or failure to use the correct materials for construction.

Always use care and supervision when lighting any kind of explosive or firework, and check your local laws regarding what is legal for you to light in your area.

Always have on hand:

  • A fire extinguisher
  • A first aid kit
  • Access to a hose or water
  • A plan for emergency injuries
  • NEVER allow children to ignite fuses or explosives
  • Always make sure fireworks have burned out completely before touching or cleaning up


Materials needed

  • Screws:- 3, 2 and 1-inch lengths
  • Power drill
  • Hammer
  • Liquid Nails -glue
  • 50 12 inch x 1.91 ID Polypipe PE4710 tubes, available at plumbing stores. These MUST be polypipe, do not use PVC. PVC can shatter causing dangerous shrapnel. In the firework world, these are known as DR11.
  • 50 wooden tube plugs (1.91 ID)
  • Fuses (optional)
  • 3 2x3x8 framing studs, (total of 5-2x3 at 2 ft long each)(10- 2x3 at 1ft long each)
  • 20 1x4's at 27 inches long each
  • 2 1x4's at 20 inches long each
  • 2 1x4's at 25 inches long each

Wood for the rack

This will create 1 (10 shot) rack.
This will create 1 (10 shot) rack.

Step 1: Gather Your Supplies

Go to Home Depot and your local plumbing store and get all your supplies together. Home Depot will cut everything you need, all you have to do is ask! Plan on spending about $120.00 USD on what you need.

Building Your Racks


Click thumbnail to view full-size
Wood frame
Wood frame
Wood frame

Step 2: Build Your Racks

Attach (1) 1-ft piece of 2x3's to each end of (1) 2ft 2x3 piece, with (4) 3-inch screws

Then take (4) pieces of the 27 inch 1x4, and screw those to the side of what you just built, (1) across the bottom, (1) across the top on each side, using 2-inch screws.

Now you have a 10-shot mortar rack. Combine as many or as little as you'd like. For our project, we obviously have 50 shots, or 5 racks combined.

Completed 10-Shot Rack

Click thumbnail to view full-size
Wood plugsGlue the mortar tube before plugging (optional really)
Wood plugs
Wood plugs
Glue the mortar tube before plugging (optional really)
Glue the mortar tube before plugging (optional really)

Step 3: Prepare Your Plugs

One at a time, take a tube and line the inside of one end with a small bead of Liquid Nails. Hammer the wooden plug into the glued end of the tube.

Once the plugs are in, secure them even further with (2) 1-inch screws on each side.

Repeat for each tube.

Place your tubes into your racks!

Almost Put Together

Click thumbnail to view full-size
Racks ready to be fully assembled.
Racks ready to be fully assembled.
Racks ready to be fully assembled.

Step 4: Fan or Angle Your Racks for the Final Step

Set the racks next to each other standing straight up, using the scrap 1x4 pieces placed between the tops of each of the racks, to make your spacing.

Next, attach the 20-inch length of 1x4 to the bottom of each side, starting in the center. Secure the piece with (1) screw into each rack on both sides of the entire project.

Next, attach the 2-inch length of 1x4 to the top of each side, with (5) screws, do this for both sides as well.

Remove the spacers. You now have a fanned or angled mortar tube launcher!


Do you do home firework displays?

See results


When your rack is finished, enjoy its durability. We blasted it off with 50 shots right off the rip with no problems. Seriously, this thing will take a beating and give you years of enjoyment. Fuse it with different burning fuses and create your own magical display!

This is an easy project that can be completed on a Saturday (provided you have all your supplies).

Happy Fourth of July!

Fused Up and Ready to Blow!

50-shot spectacular!
50-shot spectacular!

6-Tube Mortar Launcher Test Run
